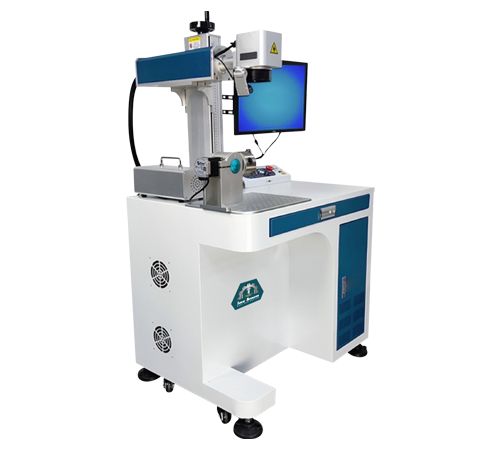

Jaikar Fiber Marking Machine

Fiber Marking Machine

Fiber Laser Marking Machine is a high-tech equipment that uses a fiber laser beam to permanently mark, engrave, or etch surfaces of metals and some non-metal materials. The focused laser beam interacts with the surface to create high-contrast, durable, and precise marks without contact or consumables like inks or chemicals.

Fiber laser marking is widely used for logos, barcodes, QR codes, serial numbers, text, and decorative designs in industries such as electronics, automotive, medical devices, jewelry, tools, and packaging.

Compared to traditional marking methods, fiber marking machines offer high speed, precision, low maintenance, long lifespan (100,000+ hours laser life), and eco-friendly operation.

Supported Materials

  • Metals: Stainless steel, Aluminum, Brass, Copper, Titanium, Gold, Silver, Iron, etc.
  • Non-Metals: Some plastics (ABS, PVC, PC, etc.), coated materials, ceramics, etc.

Control System

  • Software: EZCAD (standard), compatible with CorelDraw, AutoCAD, Photoshop, etc.
  • File Formats: PLT, DXF, BMP, AI, JPG, etc.
  • Communication: USB

Cooling System

  • Air cooling (no external chiller required)

Power & Environment

  • Power Supply: AC 220V / 110V ±10%, 50/60Hz
  • Power Consumption: < 800W
  • Laser Life: ~100,000 hours
  • Operating Temperature: 15°C – 35°

Laser Source

  • Type: Fiber Laser (Ytterbium-doped)
  • Power Options: 20W / 30W / 50W / 100W
  • Wavelength: 1064 nm
  • Beam Quality (M²): < 1.5

Marking Parameters

  • Marking Area: 110×110 mm / 150×150 mm / 200×200 mm / 300×300 mm (optional lens change)
  • Marking Depth: Up to 0.5–1.5 mm (depends on material & power)
  • Marking Speed: Up to 7,000 – 10,000 mm/s
  • Minimum Line Width: 0.01 mm
  • Minimum Character Size: 0.2 mm

Accuracy

  • Repeat Positioning Accuracy: ±0.002 mm
