CNC Wood Router Machine

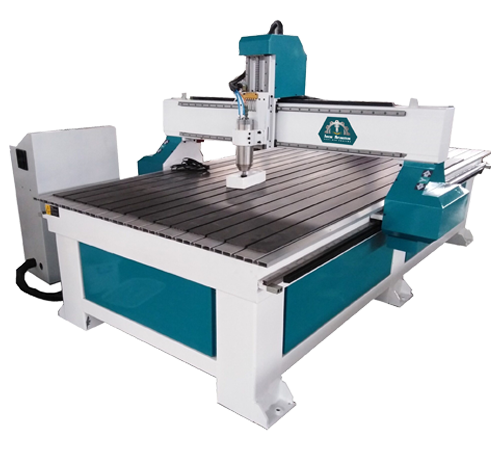

Jaikar CNC Wood Router Machine

CNC Wood Router Machine

The CNC Wood Router Machine is a high-performance computer-controlled cutting and engraving machine designed specifically for wood processing. Built with precision mechanics and advanced control systems, this machine delivers accurate, efficient, and reliable performance for woodworking industries, furniture production, cabinetry, signage, and decorative applications.

It is capable of 2D/3D cutting, carving, engraving, and drilling on all types of wood, MDF, plywood, acrylic, and composite boards, ensuring smooth finishes and intricate designs with minimal manual intervention.

Key Features

  • Rigid steel frame structure for stability and long-term durability
  • High-speed spindle for fine engraving and heavy-duty cutting
  • Advanced control system with user-friendly operation
  • Compatible with major Art Cam software for flexible design input
  • Dust collection system for a clean and safe working environment
  • High precision linear guide rails and ball screw drive for accuracy

Technical Specifications

  • Working Area: 1300 × 2500 mm (custom sizes available: 1500 × 3000 mm, 2000 × 4000 mm)
  • Spindle Power: 3.5 kW – 9 kW air-cooled / water-cooled spindle
  • Spindle Speed: 0 – 24,000 RPM
  • Drive System: Precision ball screw + rack and pinion with linear guideways
  • Max Traveling Speed: 30,000 mm/min
  • Positioning Accuracy: ±0.03 mm
  • Table Surface: Vacuum suction table / T-slot table for material holding
  • Controller: DSP / Mach3 / Syntec / NC Studio industrial control system
  • Operating Voltage: AC 220V / 380V, 50/60 Hz (customizable)
  • Supported File Formats: DXF, PLT, G-code
  • Compatible Software: ArtCAM, Aspire, UG, AutoCAD, Type3, etc.

Applications

  • Furniture manufacturing (doors, cabinets, tables, chairs, decorative panels)
  • Wood carving and 3D relief engraving
  • Signage and advertising boards
  • Musical instrument making
  • Wooden crafts and mold making
  • Cutting MDF, plywood, hardwood, particleboard, and acrylic
