CNC Stone Router Machines

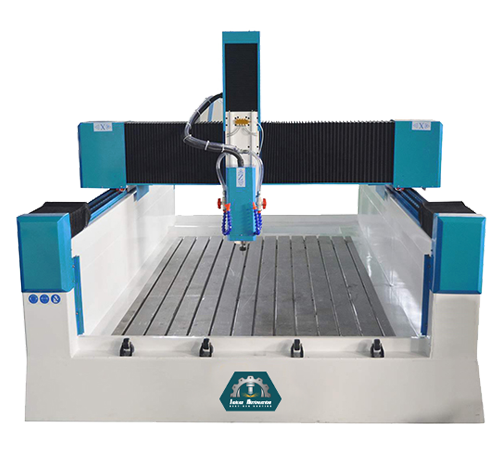

Jaikar CNC Stone Router Machines

CNC Stone Router Machines

The CNC Router Stone Machine is a high-precision, heavy-duty CNC router designed for cutting, engraving, and shaping natural and artificial stone. Built with a robust frame and advanced control systems, the machine ensures accuracy, durability, and efficiency, making it ideal for industries such as stone processing, construction, monuments, and interior decoration.

It is widely used for engraving text, reliefs, and patterns on granite, marble, quartz, and slate, as well as for cutting countertops, sinks, and architectural components.

Key Features

  • Heavy-duty welded steel structure for stability and vibration resistance
  • High-power water-cooled spindle for continuous stone cutting and carving
  • Precision ball screw drive system for smooth, accurate motion
  • Water circulation and dust-proof design for cooling and tool life extension
  • Compatible with CAD/CAM software for easy operation and high productivity
  • Automatic lubrication system for long-term reliability

Technical Specifications (Typical)

  • Working Area: 1300 × 2500 mm (customizable: 1500 × 3000 mm, 2000 × 4000 mm)
  • Spindle Power: 5.5 kW – 11 kW water-cooled spindle
  • Spindle Speed: 0 – 24,000 RPM
  • Drive System: High-precision ball screw and linear guide rail
  • Table Surface: Water tank with clamp fixtures
  • Controller: DSP / Mach3 / Syntec industrial control system
  • Max Traveling Speed: 15,000 mm/min
  • Positioning Accuracy: ±0.05 mm
  • Operating Voltage: AC 380V / 50Hz (customizable)
  • Supported File Formats: DXF, PLT, G-code
  • Compatible Software: ArtCAM, Type3, UG, AutoCAD, etc.

Applications

  • Engraving and carving on marble, granite, sandstone, slate, quartz
  • Making stone monuments, tombstones, memorials
  • Countertops, sink hole cutting, interior decorative panels
  • 3D relief carving and artistic stonework
